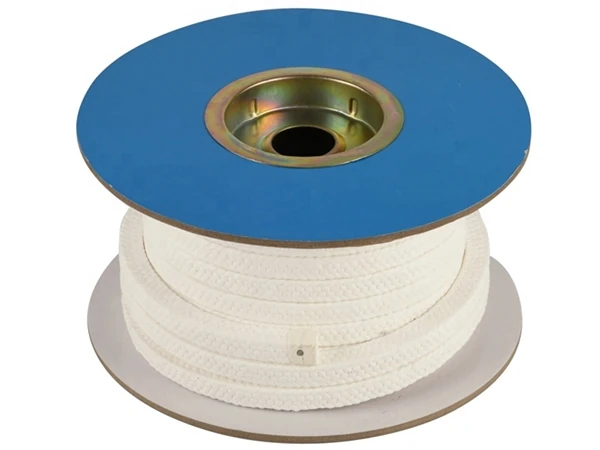

Pure PTFE Packing

Pure PTFE Packing is a pure PTFE fiber yarn braided into the square cross-section and impregnated with PTFE dispersion. High cross-sectional density and structural strength.

It is designed for valves and lower shaft speed application under medial pressure in food processing, pharmaceuticals, paper mills, fiber plants where high purity and corrosion resistance is required. PTFE packing can be also treated with lubrication, it is an economic type.

SKU: GP001 Category:

Description

Pressure Rotating 15 bar
Reciprocating 100 bar
Static 150 bar
Shaft speed 2 m/s
Density 1.3g/cm3
Temperature -150~+2600C
PH range 0~14

PACKAGE: In coil of 5 or 10kgs, other weight on request. A box each coil, 20kgs per carton.

Feature

  • It is clean, non-contaminating and graphite free
  • Long maintenance-free service life.
  • Well suited for difficult sealing applications

Application

Chemicals, solvents, corrosives, gases, strong acid media, liquor, most oxidizers, and corrosives.

Particularly recommended for sugar and chocolate processing, and fine paper production.
